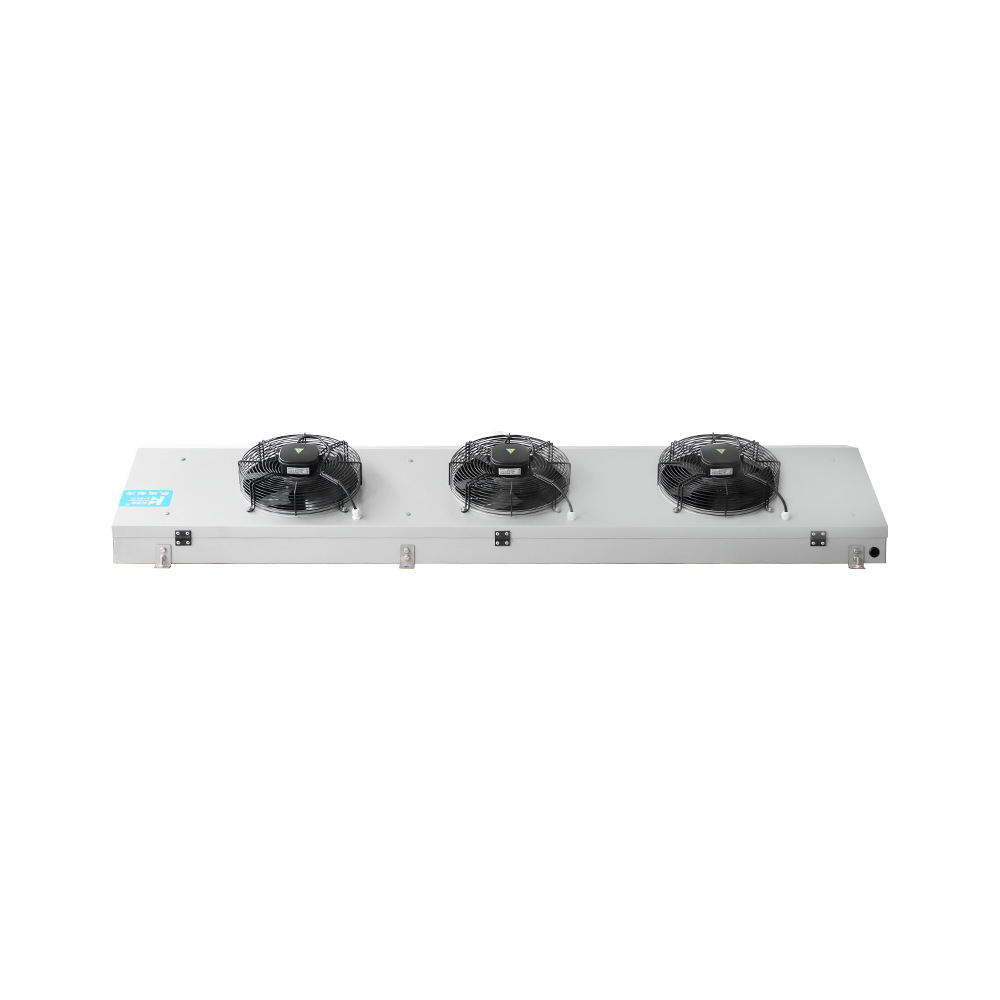

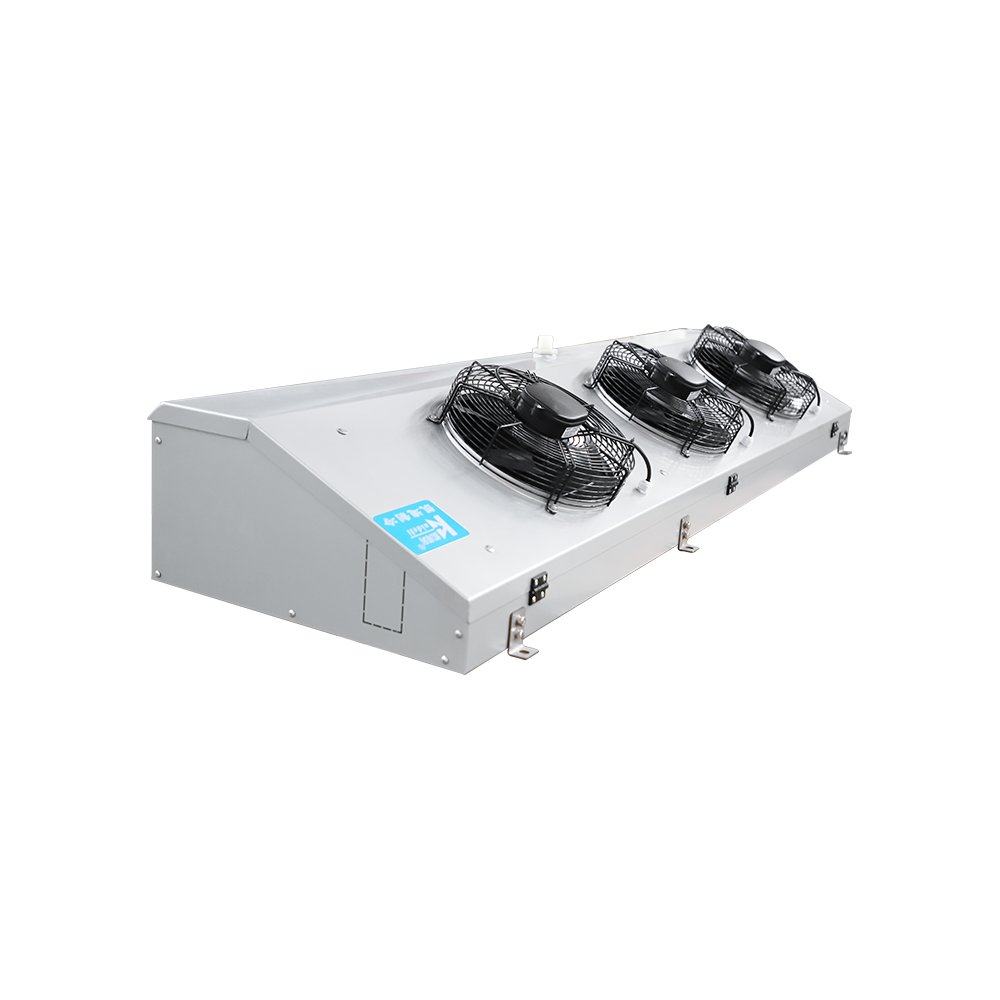

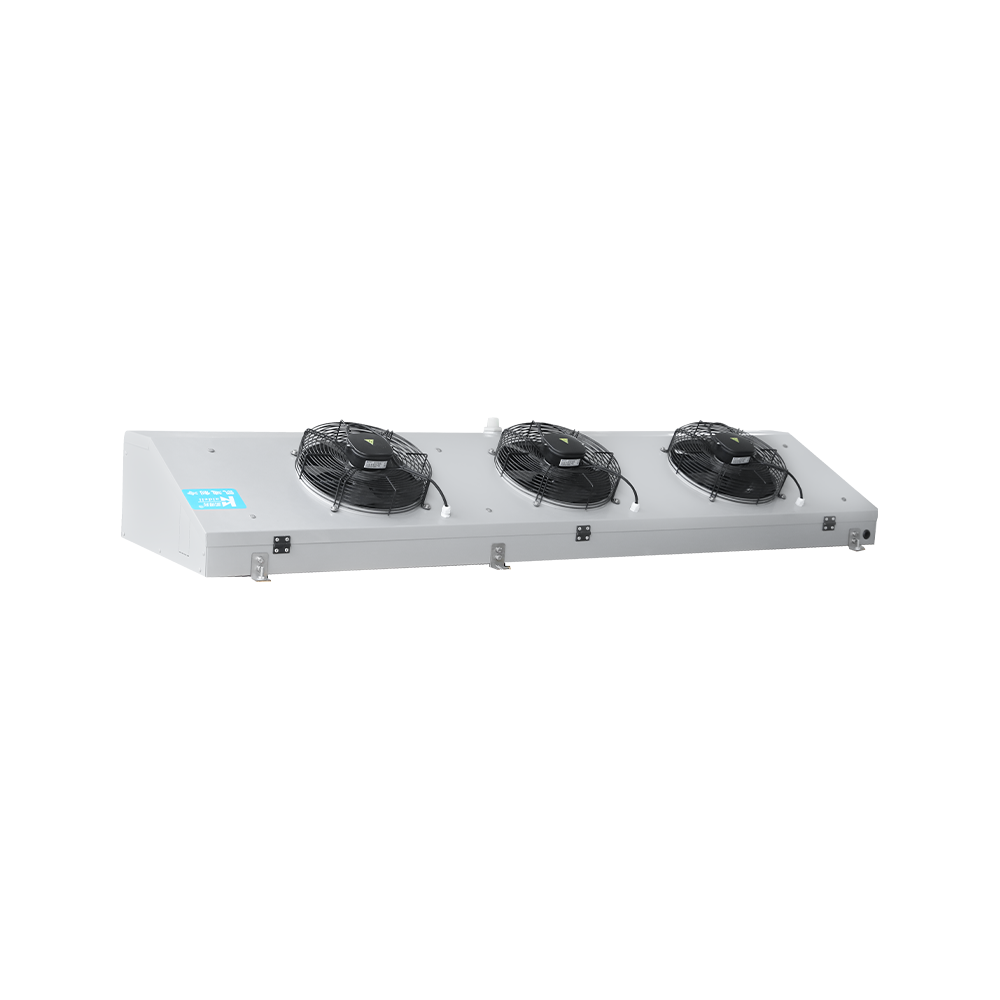

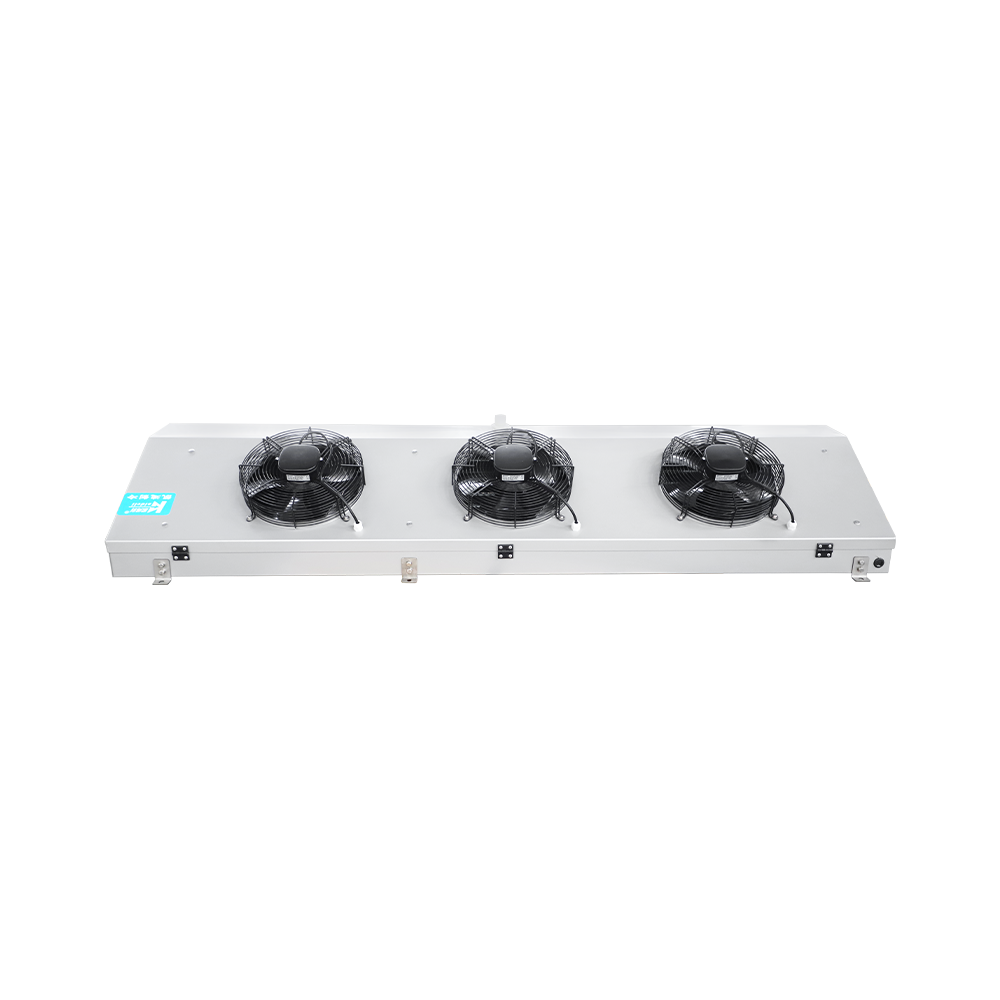

EA Series Commercial Angle Evaporator

EA series commercial angle evaporator is specially designed for small cold storages. It has a compact structural design and a hair dryer motor installed on the bevel surface, which greatly saves space and significantly improves the space utilization of cold storage.​

CONTACT US
01 Advantages 02Specifications 03Dimensions 04Unit Configuration 05Inquiry

The product shell is made of lightweight aluminum-magnesium plates, and the heat exchanger end plate uses aluminum plates to take into account both protection and weight loss. The double water tray is cleverly designed, the outer water tray is hinged for easy operation, and the inner water tray is aluminum plate sink structure to make drainage smoother. φ12 internal threaded copper tube is arranged in triangular shape, combined with hydrophilic aluminum foil corrugated aluminum sheet (4.0mm/6.0mm pitch is optional), and heat exchange is efficient. The outer rotor blower has a temperature resistance of -30~60℃, and the specifications are φ300, 1 - 4, and only flexibly configured.​
The electric heating defrost system is scientifically laid out with stainless steel heating pipes, and the defrost effect is excellent; IP65 waterproof junction box and connector, split wiring design, and is safe and reliable to use. The outlet needle valve of the cooler is convenient for pressure detection. After 23bar rigorous pressure testing, it is suitable for a variety of refrigerants, and can be pre-installed with expansion valves as needed. It is an ideal choice for refrigeration in small cold storages.

01 Advantages

The product shell is made of lightweight aluminum-magnesium plates, and the heat exchanger end plate uses aluminum plates to take into account both protection and weight loss. The double water tray is cleverly designed, the outer water tray is hinged for easy operation, and the inner water tray is aluminum plate sink structure to make drainage smoother. φ12 internal threaded copper tube is arranged in triangular shape, combined with hydrophilic aluminum foil corrugated aluminum sheet (4.0mm/6.0mm pitch is optional), and heat exchange is efficient. The outer rotor blower has a temperature resistance of -30~60℃, and the specifications are φ300, 1 - 4, and only flexibly configured.​
The electric heating defrost system is scientifically laid out with stainless steel heating pipes, and the defrost effect is excellent; IP65 waterproof junction box and connector, split wiring design, and is safe and reliable to use. The outlet needle valve of the cooler is convenient for pressure detection. After 23bar rigorous pressure testing, it is suitable for a variety of refrigerants, and can be pre-installed with expansion valves as needed. It is an ideal choice for refrigeration in small cold storages.

02Specifications
EA 30 1 / C L - E V S
Voltage, S: 1PH/220V/50hz, T: 3PH/380V/50hz.
Pre-installed expansion valve (optional).
Defrost, E: Electric heating, A: Air (without electric heating),
Pitch code, L: 4.0mm, D: 6.0mm,
Coil specification code
Number of fans
Fan diameter (cm)
Product Series

Standard and optional

●: Standard configuration; ○: Optional configuration; ×: Not optional

part Configuration part Configuration
shell Aluminum magnesium plate spraying aluminum foil Light Foil
Steel plate spraying Hydrophilic aluminum foil (blue sheet)
Galvanized sheet spraying Defrost Air defrost
stainless steel plate Electric heating tube
motor Low-light outer rotor motor Hot air (coil + water pan)
EBM external rotor motor expansion valve
Air duct fan × Drain heating line

Performance Data Sheet

Pitch 4.0mm

model Refrigeration capacity/R404A (KW) area Tube volume Air volume Range Interface specifications (mm) weight
Tc=0 Tc=10 m2 dm3 m3/h m Liquid inlet Returning Qi drain kg
ΔΤ=8K ΔΤ=10K
EA301/CL-ES 1.6 2.3 6.6 1.3 1400 5 φ12 φ12 R1” 18.5
EA301/DL-ES 2 2.9 8.8 1.7 1200 5 φ12 φ12 R1” 19.4
EA302/CL-ES 3.3 4.8 13.1 2.4 2800 7 φ12 φ19 R1” 31.2
EA302/DL-ES 4 5.9 17.5 3.2 2400 7 φ12 φ19 R1” 33
EA303/CL-ES 4.9 7.2 19.7 3.5 4200 8 φ12 φ22 R1” 43.3
EA303/DL-ES 6 8.8 26.3 4.6 3600 8 φ12 φ22 R1” 46
EA304/CL-ES 6.6 9.7 26.3 4.6 5600 9 φ12 φ22 R1” 55
EA304/DL-ES 8.1 11.9 35 6.1 4800 9 φ12 φ22 R1” 58.5

1) In the table, Tc is the storage temperature, and ΔΤ is the heat transfer temperature difference, which is the difference between the storage temperature and the evaporating temperature. 2) The range is the air supply distance at 0.5 m/s at room temperature. 3) For cooling capacity under other operating conditions, refer to the correction factor.

Pitch 6.0mm

model Refrigeration capacity/R404A (KW) area Tube volume Air volume Range Interface specifications (mm) weight
Tc=0 Tc=-18 m2 dm3 m3/h m Liquid inlet Returning Qi drain kg
ΔΤ=8K ΔΤ=7K
EA301/CD-ES 1.4 1.1 4.5 1.3 1500 5 φ12 φ12 R1” 18
EA301/DD-ES 1.8 1.4 6 1.7 1300 5 φ12 φ12 R1” 19
EA302/CD-ES 2.9 2.3 9 2.4 3000 7 φ12 φ19 R1” 30.6
EA302/DD-ES 3.6 2.9 12 3.2 2600 7 φ12 φ19 R1” 32
EA303/CD-ES 4.3 3.4 13.5 3.5 4500 8 φ12 φ22 R1” 42.4
EA303/DD-ES 5.4 4.3 18.1 4.6 3900 8 φ12 φ22 R1” 45
EA304/CD-ES 5.8 4.6 18.1 4.6 6000 9 φ12 φ22 R1” 53.7
EA304/DD-ES 7.2 5.7 24.1 6.1 5200 9 φ12 φ22 R1” 57

1) In the table, Tc is the storage temperature, and ΔΤ is the heat transfer temperature difference, which is the difference between the storage temperature and the evaporating temperature. 2) The range is the air supply distance at 0.5 m/s at room temperature. 3) For cooling capacity under other operating conditions, refer to the correction factor.

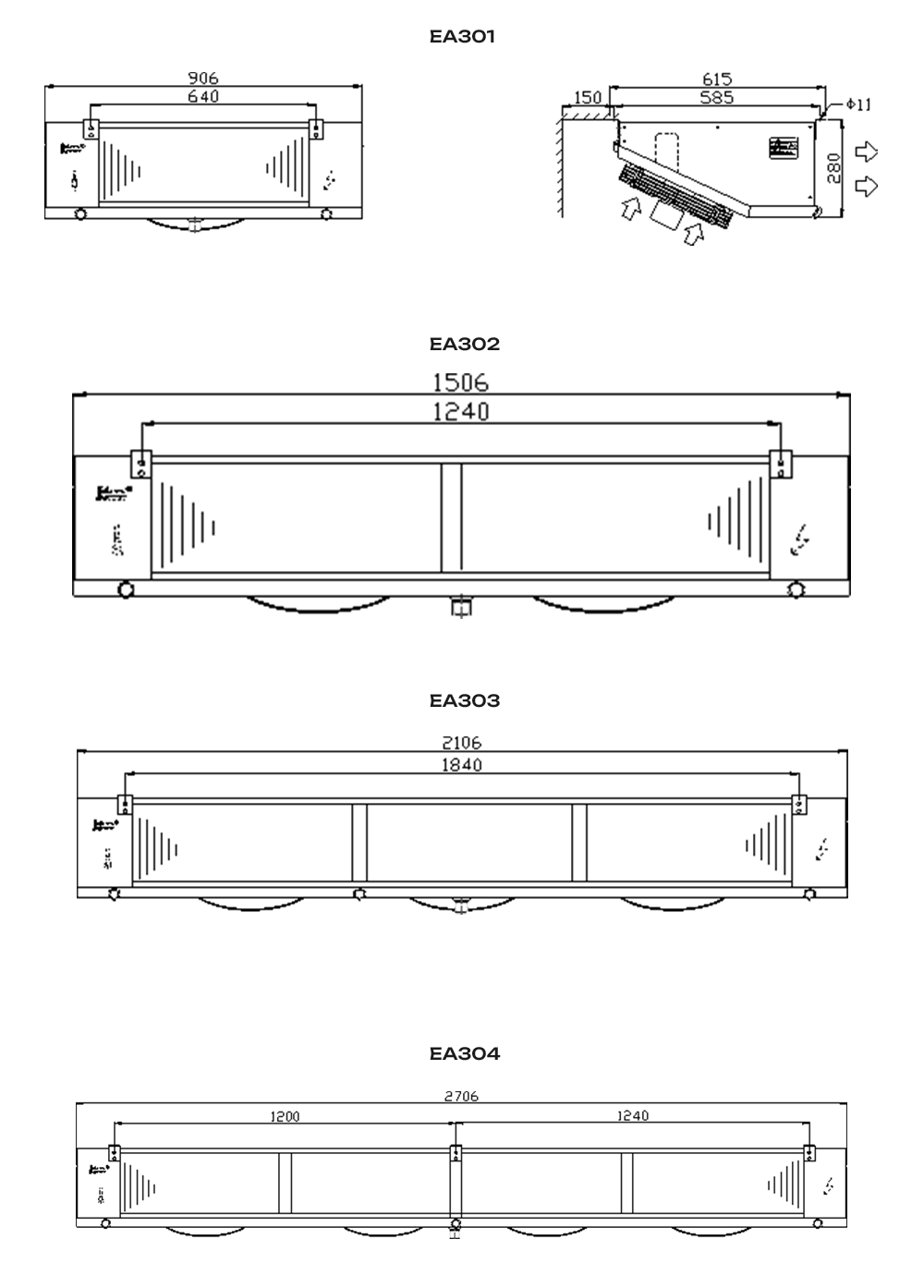

03Dimensions
  • 04Unit Configuration

    Electrical parameters

    model fan motor Electric defrost
    Voltage (V) Power (W) Current (A) Speed (r/min) Coil (KW) Water tray (KW) Total power (KW)
    EA301* 220-1 85 0.42 1380 1×0.6 1×0.6 1.2
    EA302* 220-1 170 0.84 1380 1×1.1 1×1.1 2.2
    EA303* 220-1 255 1.26 1380 1×1.6 1×1.6 3.2
    EA304* 220-1 340 1.68 1380 1×2.0 1×2.0 4
    05Inquiry
